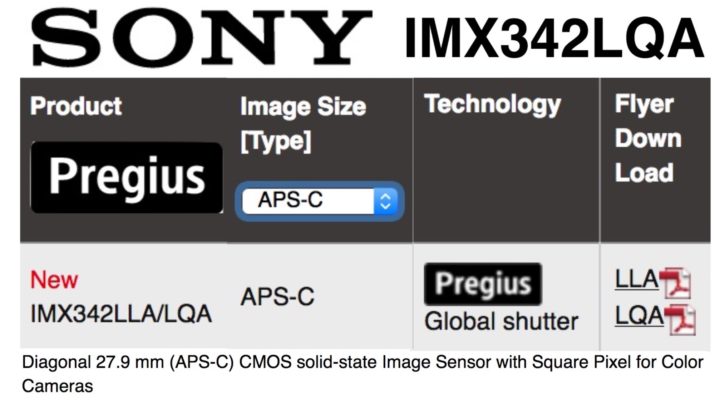

Sony has expanded its global shutter line-up (Pregius sensors) to APS-C, for both, monochrome and RGB sensors (see Sony here – Monochrome Pregius PDF / RGB Pregius PDF).
Previously it was available only for 1″ sensors or smaller.
Follow FujiRumors: Facebook, Instagram, RSS-feed, Youtube and Twitter
Join our User Groups: Fujifilm X-T, GFX, X-H, X-Pro, X-E and X100 line
New Facebook Pages: Fujifilm X-T, Fujifilm X-H and Fujifilm GFX
Here are all details:
The IMX342LQA is a diagonal 27.9mm (APS-C) CMOS active pixel type solid-state image sensor with a square pixel array and 31.49M effective pixels. This chip features a global shutter with variable charge-integration time. This chip operates with analog 3.3 V, digital 1.2 V, and interface 1.8V triple power supply, and has low power consumption. High sensitivity, low dark current and low PLS characteristics are achieved. (Applications: FA cameras, ITS cameras)
- CMOS active pixel type dots
- Built-in timing adjustment circuit, H/V driver and serial communication circuit
- Global shutter function
- Input frequency
- 37.125 MHz / 74.25 MHz / 54 MHz
- Number of recommended recording pixels: 6464 (H) × 4852 (V) approx. 31.36 M pixels
Readout mode
All-pixel scan mode
Vertical / Horizontal 1 / 2 Subsampling mode
ROI mode
Vertical / Horizontal ‐ Normal / Inverted readout mode - Readout rate
Maximum frame rate in
All-pixel scan mode: 8 bit 35.4 frame/s, 10 bit : 35.4 frame/s, 12 bit : 25.8 frame/s - 8-bit / 10-bit / 12-bit A/ D converter
- CDS / PGA function
0 dB to 24 dB: analog gain (0.1 dB step)
24.1 dB to 48 dB: analog gain: 24 dB + digital gain: 0.1 dB to 24 dB (0.1 dB step) - I/O interface
SLVS (2 ch / 4 ch / 8 ch switching) output (594 / 297 Mbps per ch)
SLVS – EC (1 Lane / 2 Lane / 4 Lane / 8 Lane) output (2.376 / 1.188 Gbps per Lane) - Recommended lens F number: 2.8 or more (Close side)
- Recommended exit pupil distance: –100mm to – ∞
